Mix Master 30

The latest design of ELKON innovation team, ELKON MIX MASTER-30 On-site Concrete Batching Plant, allows to produce concrete according to international standards in a very economical way even for small projects that require relatively small quantity of concrete.

Mixer Types
Production Types

30

Product Size Image

/h

  • Quick installation without crane and quick relocation (only 1 hour)
  • No need for any concrete foundation
  • Installation on a very small space
  • Can be transported by towing on roads
  • Cost effective shipping to overseas (can be fit into 1 unit 40’OT Container along with the bag cement feeding system)
  • No permission required for concrete production
  • Minimize the concrete transportation cost as it allows concrete production on site
  • High quality and precise concrete production

FEATURES

Capacity

30 m³/h

Mixer Capacity

750/500 l.

Mixer Type

Pan or Planetary

Aggregate Storage Bin Capacity

2x5 m³ or 4x5 m³

Aggregate Loading Type

Transfer Conveyor

DETAILS

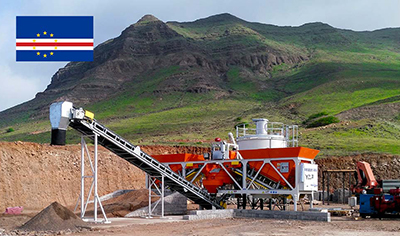

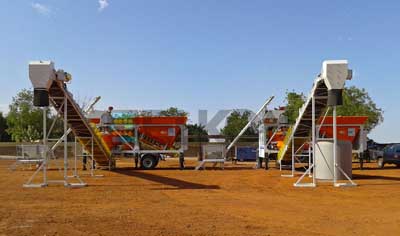

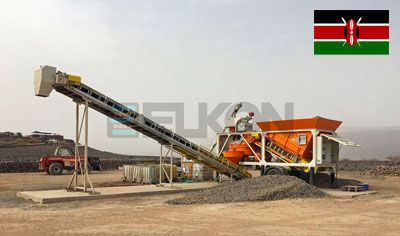

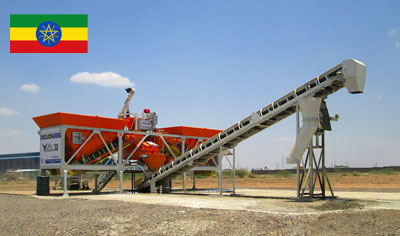

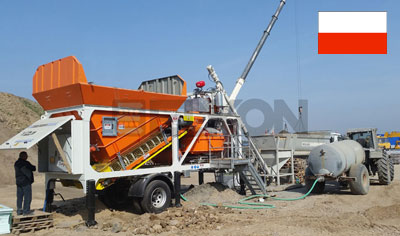

All equipment composing on-site concrete batching plants such as aggregate storage bins, pan or planetary mixer, cement, water and chemical additive scales, power and control panel are designed on a trailer equipped with axles and wheels. Thus, ELKON Mix Master-30 On-Site Concrete Batching Plant enables installation within less than an hour even on a very small areas and provide concrete production wherever needed.

Concrete production in accordance with international standards is carried out thanks to precise weighing scales and fully automated control system.

It can be preferred with pan or planetary mixer options and 2 or 4 units aggregate storage bins, each with a storage capacity of 5 m³.

ELKON Mix Master-30 Worksite Type Concrete Batching Plant can directly discharge cocnrete to the mobile or stationary concrete pump, as well as to the truck mixer by the optional concrete discharge belt.

Bag and / or big bag cement feeding systems or cement silo can be used depending on the cement supply.
