ELKON Concrete Batching Plants is continuing its sales in Dubai which is known with its most prestigious and impossible to succeed projects defined by expressions like world’s biggest, world’s largest and first in the world etc.

Our company which is the solution partner of the special projects with its 40 years of experience has just added a new concrete plant for precast in the region.

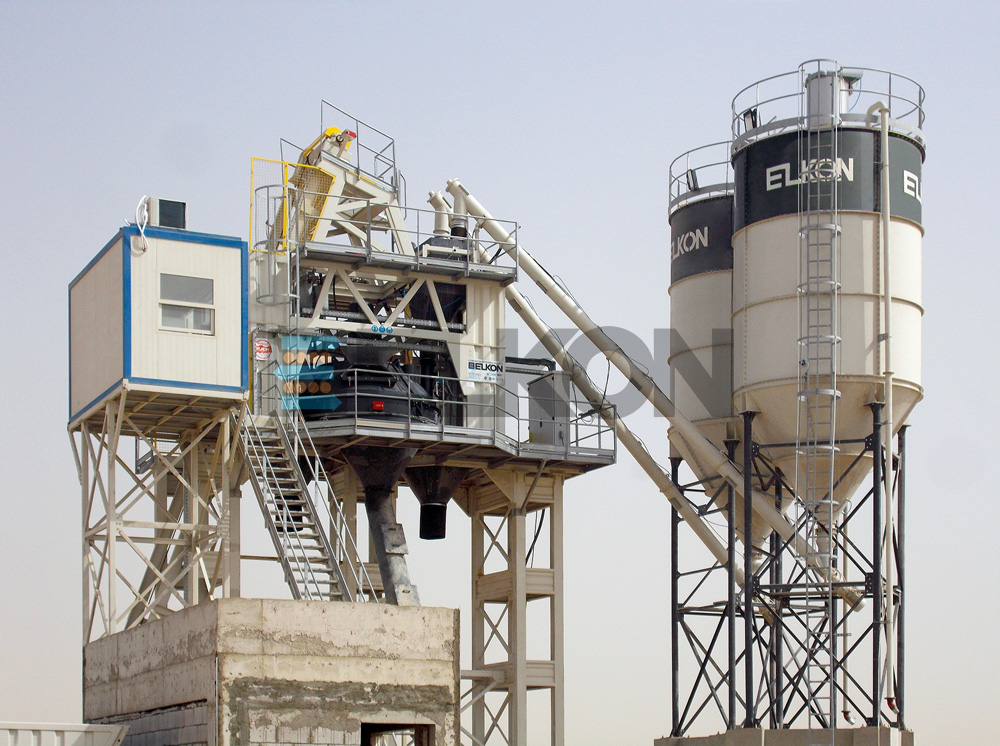

Elkomix-90 PL Concrete Batching Plant which is designed especially for the factory of the client built on 16.000 m² indoor areas with 3 halls which produces precast concrete products like hollow core, concrete panels, barrier, column and beam has been commissioned successfully in the past months by the engineers of ELKON.

As the factory area does not allow the build a concrete ramp for the aggregate loading, the aggregate storage silo with 4*20 m³ storage capacity are placed as embedded in the ground to be able to load the aggregate from ground level.

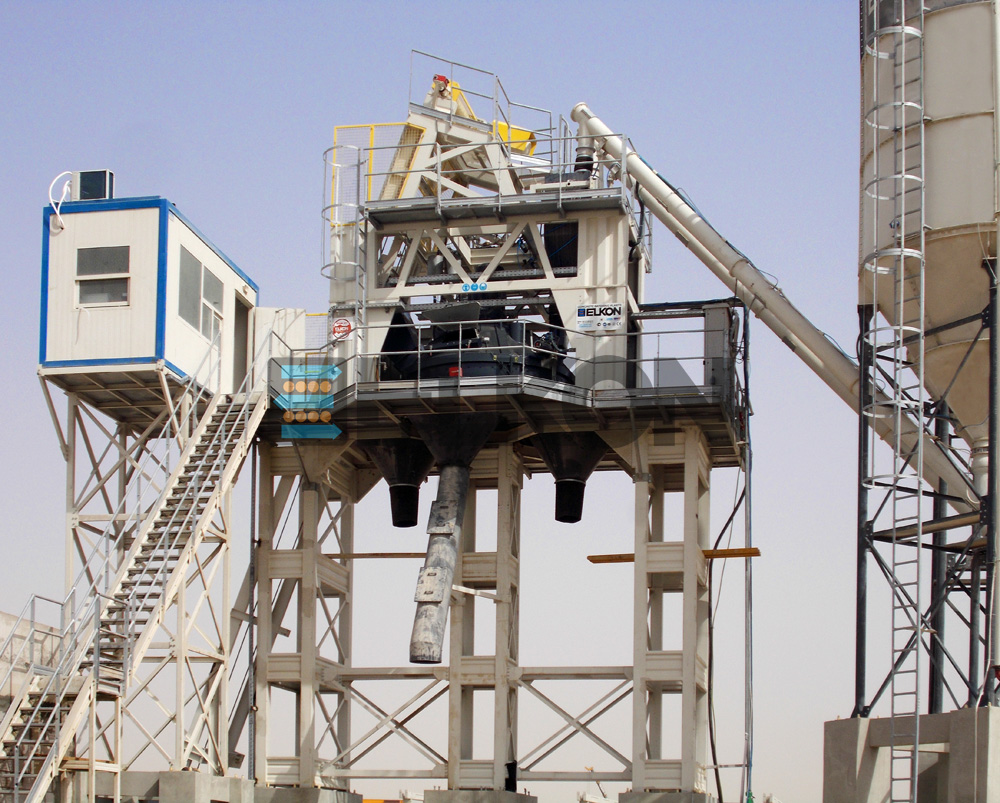

The concrete batching plant which is equipped with 2250/1500 l. ELKON Planetary Mixer (1,5 m³ vibrated concrete in each batch) has three separate mixer discharge and the distribution of the concrete can be realized with the two units of High-Speed Concrete Travelling Bucket which are located in the discharge of the two discharge points of mixer.

If desired, ready mix concrete production is being performed, truck mixer can be supplied by the third mixer discharge chute.

One of the bins of the aggregate storage silo of the Elkomix-90 Concrete Batching Plant is equipped with modular type aggregate precise weighing system with elastic suspension for the weighing of the special aggregate material which is being used by the client in several products in a accurate rate.

Thanks to this system and special automation system, the weighing of the desired amount of material can be done most accurate way.
